50KW adjustable PCS power conversion system with built-in isolation transformer

Name: 50KW adjustable PCS power conversion system with builtin isolation transformer
Brand: RUSEN
Price: 1 USD

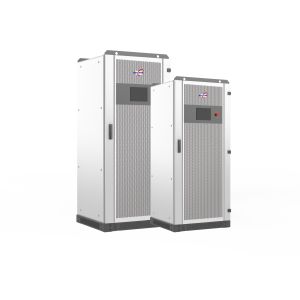

Cheap 50KW adjustable PCS power conversion system with built-in isolation transformer for sale

Brand Name : RUSEN

Model Number : PCS-A50-MG

Certification : IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-30days

Model : PCS-A50-MG

Power Rating : 50KW

Max Efficiency : 96.5%

Operating Temperature Range : -30 ~ 55℃

Battery Compatibility : Li-ion / User-defined

Rated Battery Voltage : 320-850V

Cooling Method : Automatic

Input Voltage Range : 50/60Hz

PV INPUT DC voltage, current : 320~850

Communication InterfaceInterface : RS485/Wifi/GPRS/CAN/TCP/IP

Certifications : IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B

Warranty : 5 years

Contact Now

50KW adjustable PCS power conversion system with built-in isolation transformer

• Support fine adjustment of active/reactive power, dynamically adjust output parameters according to load demand, and achieve efficient utilization of power resources.
• Integrate multiple working modes, adapt to different scenarios such as grid connected and off grid power supply, and meet the operational requirements of energy storage systems.
• Accurately control power output, flexibly adapt to complex working conditions, and provide stable solutions for new energy systems.

KEY STRENGTHS

• Reactive power, active power adjustable.

• Redundant design for auxiliary power supply.

• Multiple working modes are available, which can be ﬂexibly applied to various working scenarios.

• Built-in isolation transformer, adapt to impact load.

Description

Model	PCS-A50-MG
DC(battery)
Voltage range (V)	320~850
Max. current (A)	178
AC(on-grid)
Max. output power (kW)	55
Rated output power (kW)	50
Rated voltage (V)	400
Voltage range (V)	320~460
Rated current (A)	72
Max. output current (A)	80
Rated frequency (Hz)	50/60
Frequency range (Hz)	45~55 / 55~65
THDi	<3%
Power factor	1leading~1lagging(settable)
Grid type	3W+N+PE
AC(off-grid)
Rated voltage (V)	400
THDu	<1% Linear ＜5% nonlinear
Rated frequency (Hz)	50/60
Overload capacity	110% long-term
General data
Max. efﬁciency	96.5%
Ingress protection	IP21
Noise emission (dB)	<70
Operating temperature (℃)	-30 ～ +55
Cooling	Forced air
Relative humidity	0 ~95% non-condensing
Max. operating altitude (m)	5,000(>3,000 derating)
*Dimension WDH (mm)*	*8008001,900*
Weight(kg)	712
Self-consumption	<0.5%
On/ off grid switching	Automatic
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certiﬁcates	IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
